PALLET FOOTPRINT GUIDE
Packing your ArcticStore containers needs care and precision to maximise the available space. This guide will help you to quickly see what’s possible.
-
4 NZ-pallets in a 10ft ArcticStore
-
4 NZ-pallets in a 10ft ArcticStore
-
5 Trolleys in a 10ft ArcticStore
-

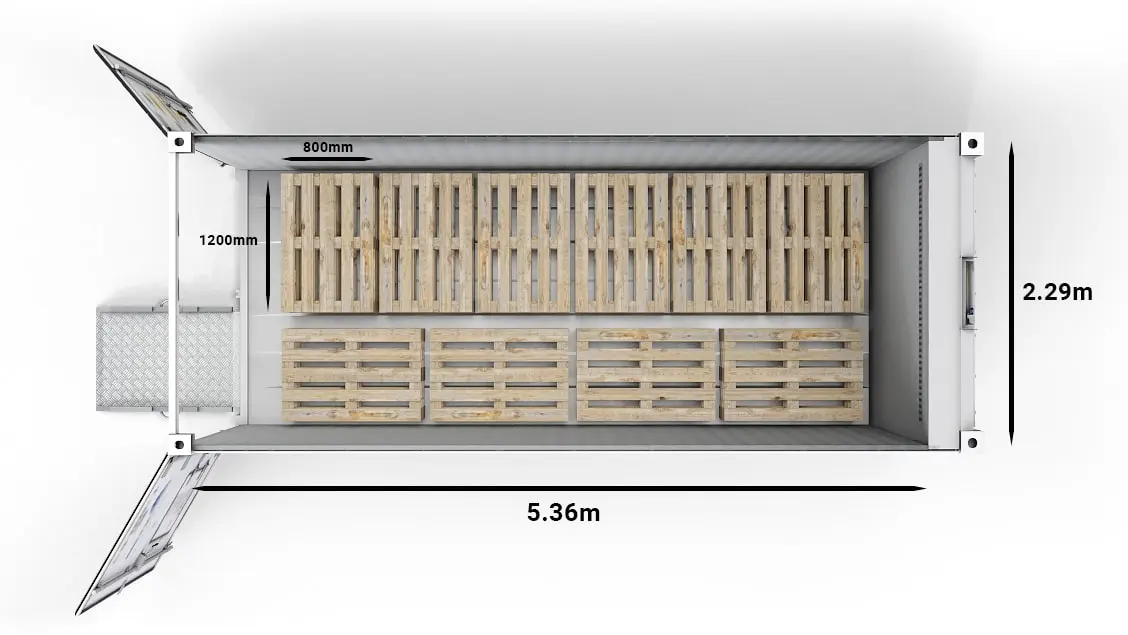

8 NZ-pallets in a 20ft ArcticStore
-
10 Trolleys in a 20ft ArcticStore
-
18 NZ-pallets in a 40ft ArcticStore
-
22 Trolleys in a 40ft ArcticStore
-

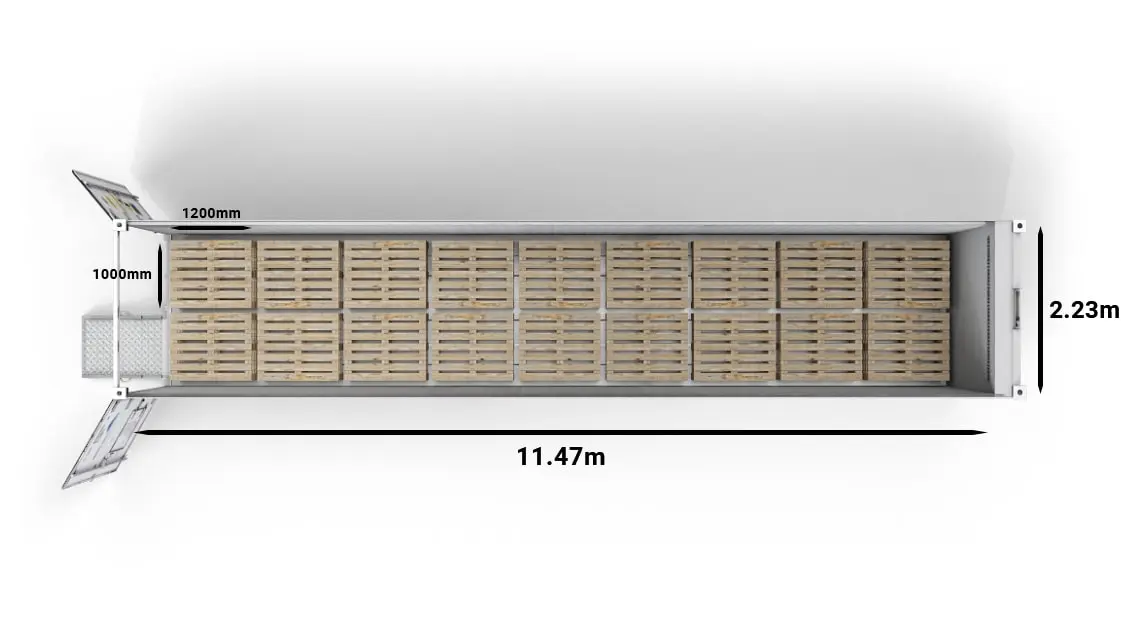

18 NZ-Pallets in a 40ft Horizon
-

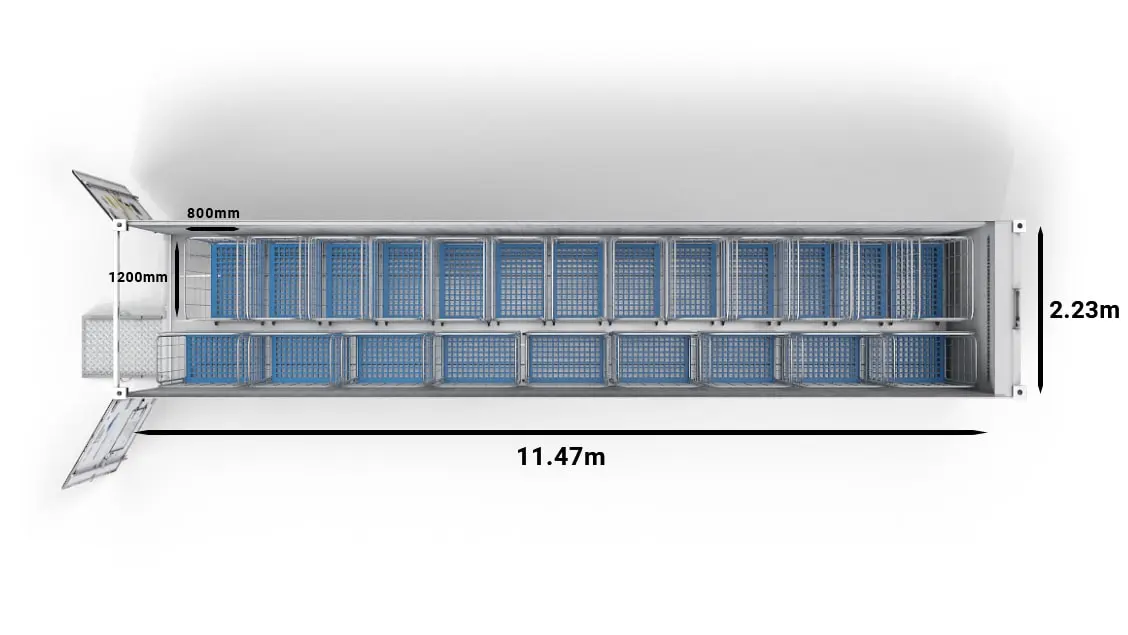

22 Trolleys in a 40ft ArcticStore Horizon
-
8 NZ-pallets in a 20ft UltraFreezer
-
10 Trolleys in a 20ft UltraFreezer
-
18 NZ-pallets in a 40ft UltraFreezer
-
22 Trolleys in a 40ft UltraFreezer
-
5 NZ-pallets in a 20ft ArcticBlast
-
7 Trolleys in a 20ft ArcticBlast
-
11 NZ-pallets in a 40ft ArcticBlast
-
14 Trolleys in a 40ft ArcticBlast
-

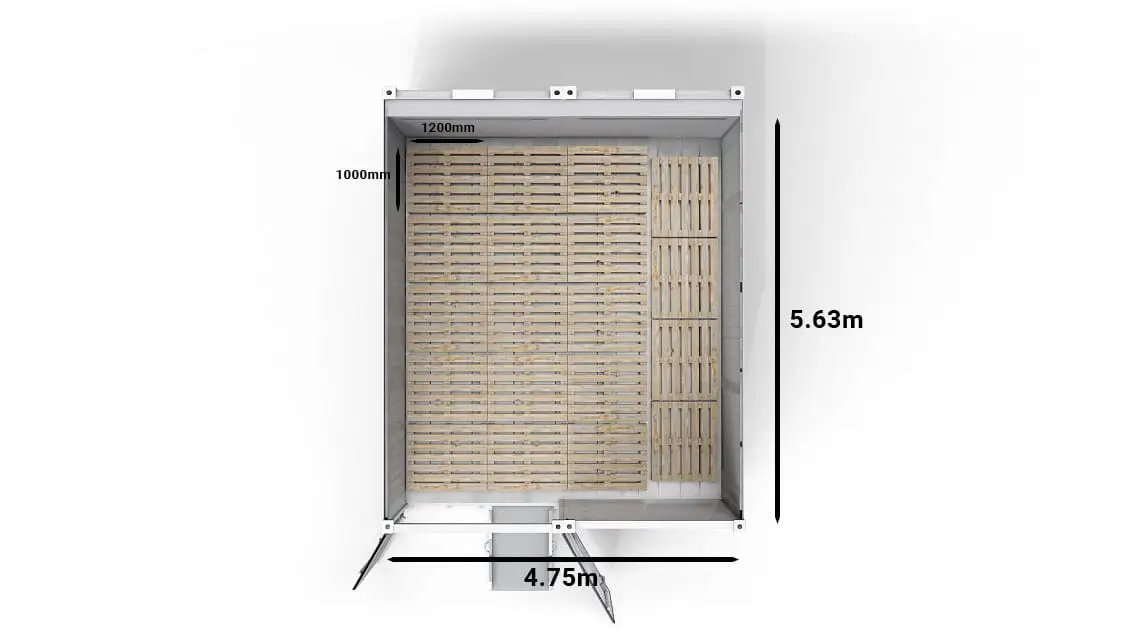

19 NZ Pallets (2-bay 20ft Arctic SuperStore)
-
22 Trolleys (2-Bay 20ft Arctic SuperStore)
-
30 NZ-pallets (3-bay 20ft Arctic SuperStore)
-
36 Trolleys (3-Bay 20ft Arctic SuperStore)
-

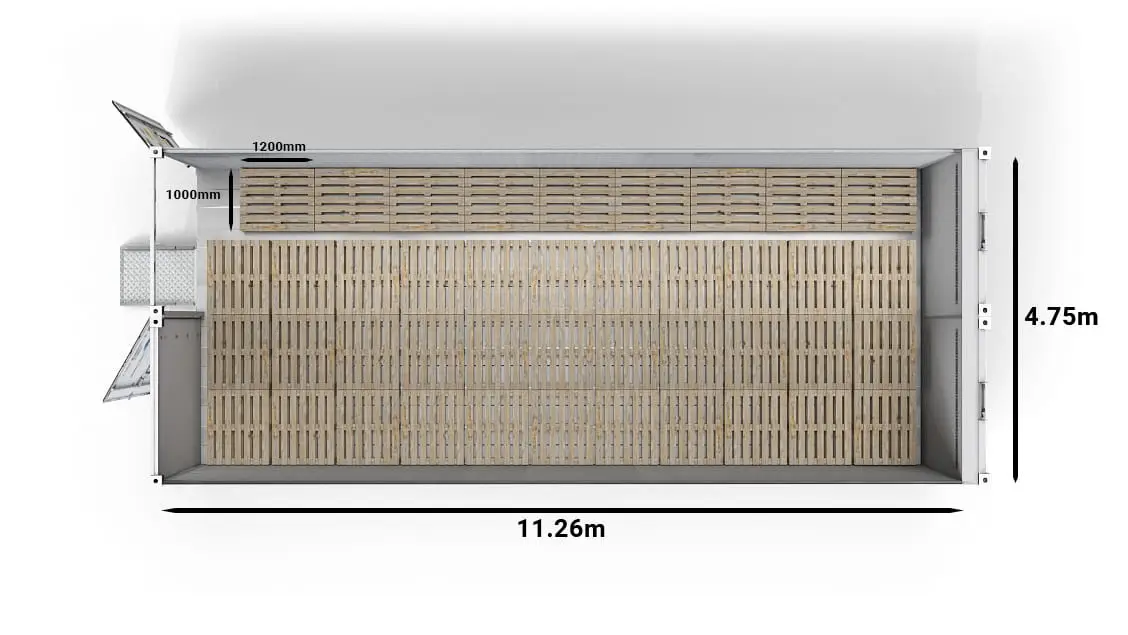

42 NZ Pallets (2-bay 40ft Arctic SuperStore)
-
51 Trolleys (2-bay 40ft Arctic SuperStore)
-
66 NZ-pallets (3-bay 40ft Arctic SuperStore)
-
84 Trolleys (3-bay 40ft Arctic SuperStore)
-
220 NZ-pallets (10-bay 40ft Arctic SuperStore)
-
280 Trolleys (10-bay 40ft Arctic SuperStore)
GETTING THE MOST OUT OF YOUR COLD STORAGE SOLUTION
When you hire ArcticStore cold storage from TITAN, you’ll probably have plans for what you intend to do with every square inch of it.
Chilling large areas down to temperatures as low as -75°C requires energy use – something every business in New Zealand has an eye on right now. So it makes good sense to use your cold storage space as efficiently as you can.
To help you understand what’s possible in our individual cold storage units and also our modular Arctic SuperStores, these floorplans show the pallet footprint for different models. Please note that all illustrations show NZ-pallets.
ARCTICSTORE
Our signature model has a footprint of between four and 18 pallets, depending on which size you choose (20ft ArcticStore shown here).
ARCTICBLAST
Good airflow is essential in our ArcticBlast cold stores. This results in a slightly less condensed pallet footprint (20ft ArcticBlast shown here).
SUPERSTORE – SMALL/MEDIUM CONFIGURATION
Arctic SuperStores are bespoke, modular constructions using a combination of products from our range. This illustration shows 3 x 20ft ArcticStore containers side by side.
SUPERSTORE – LARGER CONFIGURATION
Ten of our impressive 40ft ArcticStore containers side by side show that a footprint of 220 NZ-pallets is possible.
